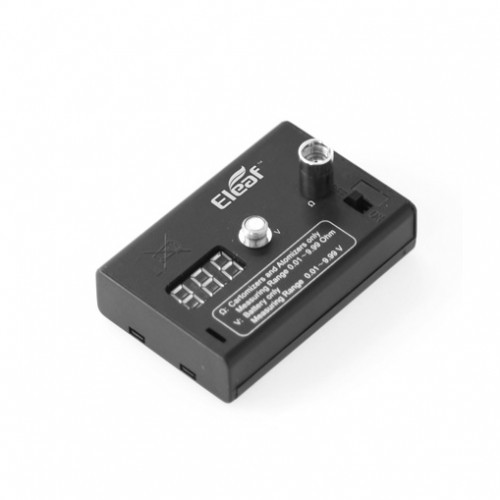

Eleaf Ohm Meter Reader

Flat Rate $3.99

Product Description

Digital Ohmmeter & Voltmeter
    Standard Configuration:
1× Meter Device
1× Connector

Parameter of Digital Ohmmeter & Voltmeter
Range for tested resistance: 0.01 ohm to 9.99 ohm
Range for tested voltage: 0.01 V to 9.99 V
Operating voltage: 2.2V to 5.5V
Working current: Less than 10 mAh with no tested
object; less 30 mAh with tested object
Standby power consumption: Less 10 uA


Digital Ohmmeter & Voltmeterr is designed for testing resistance and voltage of e-cigarette products.
The size is very small, making it easy to test resistance and voltage at any time and place even for
the most basic e-cigarette user.
There are two ports on the Digital Ohmmeter & Voltmeter: The left one for testing voltage and the right one for testing resistance. (The ports are for eGo-threaded devices and the connector for 510-threaded devices.)
Step 1: Turn on the device. (The switch is near the port for testing resistance.)
Step 2: Screw the battery port of the e-cigarette onto one the voltage port of the device for testing its
voltage. When pressing the button on the battery of the e-cigarette, the reading of the voltage
will show in the LED display. Screw the atomizer onto the resistance port of the device for
testing its resistance. The ohm reading will show in the LED display.
